Single-Chamber Vacuum Furnaces
Designed for high-performance heat treatment, Fulcrum's single-chamber vacuum furnaces offer consistent heating, advanced gas quenching, and contamination-free processing for the best metallurgical results.

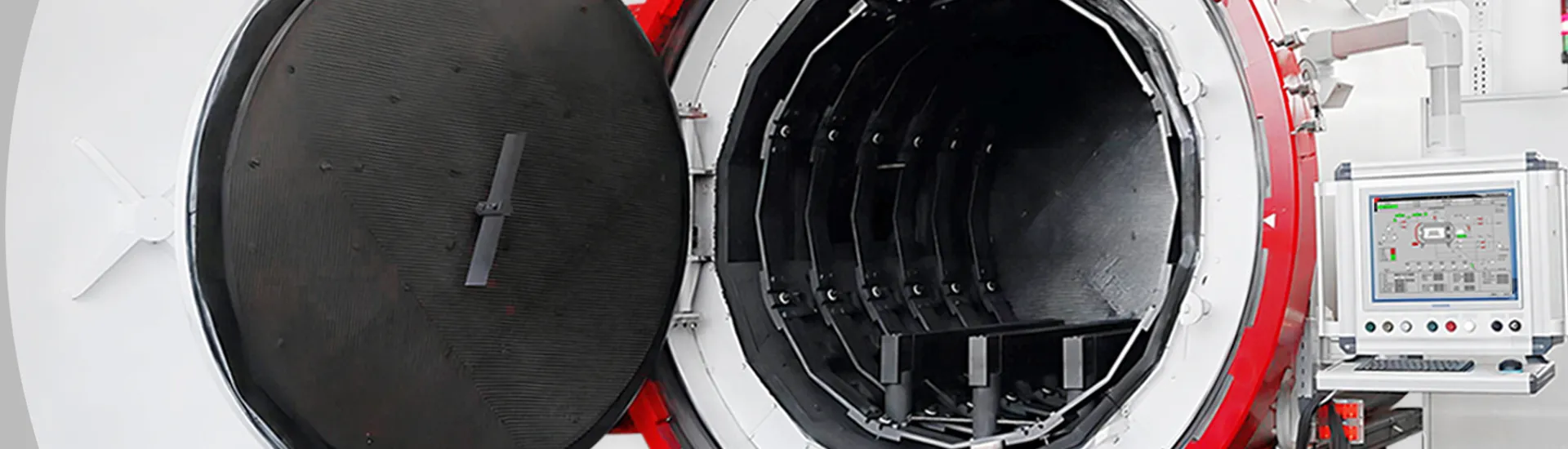

Fulcrum horizontal vacuum furnaces ensure heat treatments with molecular precision and reproducible processes for aerospace, automotive, commercial heat treaters and metal processing firms.
Our cold-wall furnaces can reach extremely high vacuum levels and are available in various sizes and geometries. They are offered in fine or high vacuum configurations while the highly customizable hot zones can be a choice of graphite or all-metal with a circular (f-cyclone™) or square (f-cyclone2™) cross-section.
The convection-assisted heating system ensures uniform temperature distribution within the vacuum furnace and the multi-directional gas quenching system supports pressures up to 25 bar with nitrogen, argon or helium, offering precise control of the cooling rate.
The LPC (Low Pressure Carburizing) technology further improves surface hardness and wear resistance, thus ensuring superior quality results.
Standard dimensions (Wx H x D ) | Loading Capacity | Features Options |
300 x 300 x 500 mm | 200kg - 14000kg | High vacuum system LPC - Low pressure carburizing |
400 x 400 x 600 mm | ||
600 x 600 x 900 mm | ||
900 x 900 x 1200 mm | ||
1000 x 1000 x 1500 mm |
(Altrenative dimensions and customsolutions available)

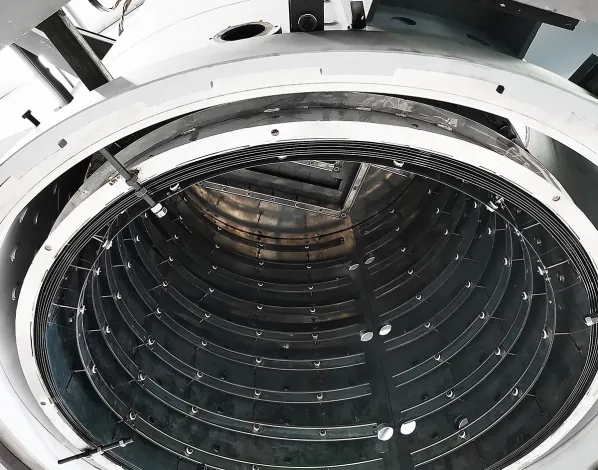

Fulcrum vertical vacuum furnaces are supplied in top-loading or bottom-loading configurations, allowing for the accommodation of tall, heavy or complex-geometric components while keeping distortions during heat treatments to a minimum.
Supporting several pressures and gases, the advanced gas quenching system guarantees fast and consistent cooling. These small- footprint vacuum furnaces maximize operational effectiveness by seamlessly blending into current manufacturing facilities.
High precision processes with the most stringent industrial requirements and needing rigorous quality control will find the furnace design perfect as it improves heat treatment repeatability. Reduced cycle times resulting from improved cooling performance increase overall productivity.
By greatly increasing surface hardness and durability, the Low Pressure Carburizing (LPC) technology extends component lifetime and guarantees best performance and dependability.
Standard dimensions (Wx H x D ) | Loading Capacity | Features Options |
900 x 900 mm | 800kg - 4000kg | High vacuum system LPC - Low pressure carburizing |
1000 x 1000 mm | ||
1200 x 1200 mm | ||
1500 x 1500 mm | ||
1800 x 1800 mm | ||
2000 x 2000 mm |
(Altrenative dimensions and customsolutions available)

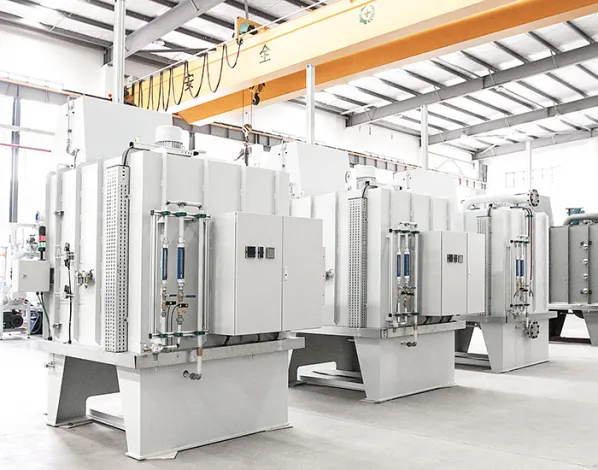

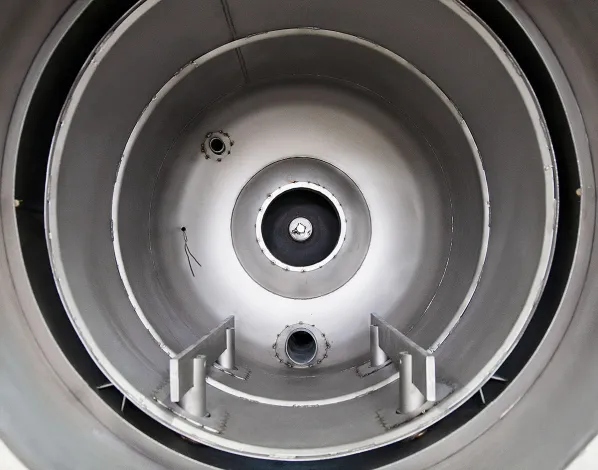

Hot-wall, pre-evacuated retort furnaces provide precise thermal processing for tempering, annealing, nitriding and nitrocarburizing uses. Perfect for companies needing high-consistency heat treatment, they are made to run in a controlled low-oxygen environment and guarantee surface quality and uniform treatment.
Available in various sizes, they are equipped with a vacuum pump that allows pre-evacuation of the retort in order to eliminate unwanted contaminants before the introduction of process gases: this minimizes oxidation ensuring cleaner surfaces and better metallurgical properties of the treated elements.
Fulcrum's vacuum retort furnaces are the ideal solution for high-quality heat treatments which, thanks to shorter cycles, make them the most cost-effective choice for the manufacturing industry: their carefully controlled process conditions result in longer component lifetime, lowering rework and raising the general quality of the result.
Standard dimensions (Wx H x D ) | Loading Capacity |
300 x 300 x 500 mm | 300 kg |
400 x 400 x 600 mm | 400 kg |
600 x 600 x 900 mm | 800 kg |
900 x 900 x 1200 mm | 1500 kg |
1000 x 1000 x 1500 mm | 4000 kg |
(Altrenative dimensions and customsolutions available)

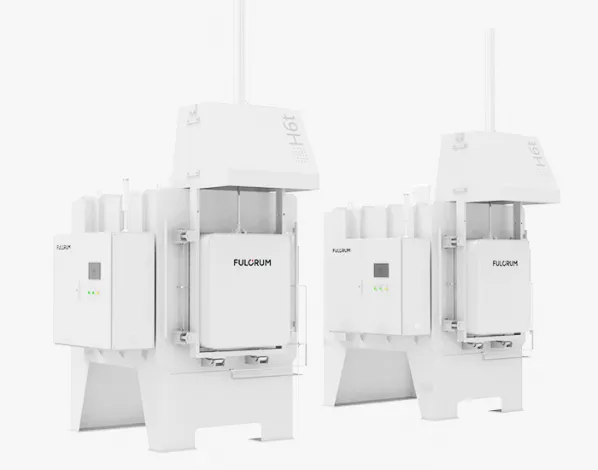

Atmosphere tempering furnaces are the perfect complement to high-temperature vacuum hardening furnaces, providing oxidation control and improved surface quality in many fine-tolerance manufacturing industries.
Available in a wide range of sizes and suitable for loads up to 10,000 kg, our furnaces offer simplified installations and reduced investment costs.
Though frequently offered as a companion to Fulcrum's vacuum hardening furnaces, these units also function as standalone solutions providing great dependability and simplicity of use. With Fulcrum's extensive expertise in vacuum heat treatment, customers gain access to a superior approach to atmosphere tempering, backed by advanced engineering and industry-leading technology.
Standard dimensions (Wx H x D ) | Loading Capacity |
300 x 300 x 500 mm | 200kg - 10000kg |
400 x 400 x 600 mm | |
600 x 600 x 900 mm | |
900 x 900 x 1200 mm | |
1000 x 1000 x 1500 mm |
(Altrenative dimensions and customsolutions available)
