Nanocrystalline cores are an advanced class of soft magnetic material that represents a significant leap in performance for many high-frequency power electronics applications.

In essence, they are cores made from a material with an extremely fine crystalline structure, where the crystal grains are typically 10-20 nanometers (billionths of a meter) in size.

The "Nano" Structure: What Makes It Special

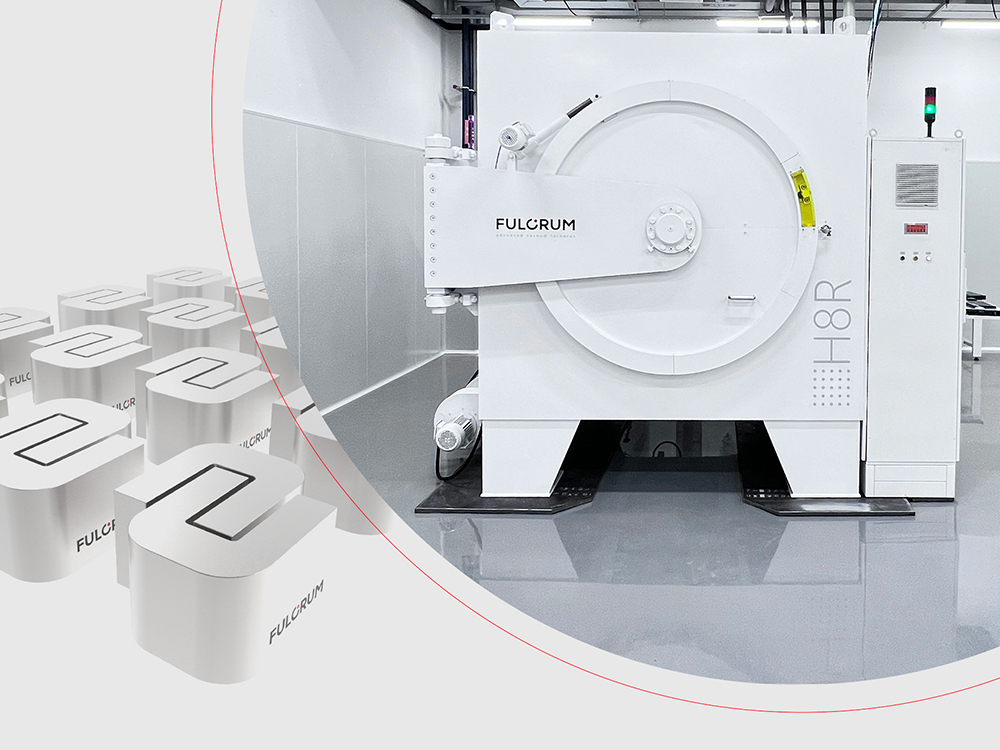

The revolutionary aspect lies in this nanoscale structure, which is created through a sophisticated manufacturing process that includes an annealing heat treatment of the amorphous ribbon at a controlled temperature. This process causes tiny, nano-sized crystals of Iron-Silicon (Fe-Si) to precipitate uniformly within the still-amorphous matrix.

This unique composite structure—nanoscale crystals embedded in an amorphous intergranular phase—is the key to its superior magnetic properties.

Key Characteristics and Advantages

Nanocrystalline cores combine the best properties of two other common soft magnetic materials: the high saturation flux of silicon steel and the low core loss of ferrites, especially at higher frequencies.

The results are:

1. High Efficiency:

The extremely low core loss means very little energy is wasted as heat. This is critical for modern high-efficiency power supplies and helps in thermal management.

2. Power Density:

The combination of high saturation flux and high permeability means you can build a transformer or inductor that is both smaller and more powerful than one made with ferrite. This enables the miniaturization of electronic devices.

3. High-Frequency Performance:

They excel in the switching frequency range of modern power electronics (typically 10 kHz to several hundred kHz), where traditional silicon steel becomes too lossy and ferrites saturate too easily.

Common Applications

Due to their superior performance profile, nanocrystalline cores are the material of choice for demanding applications:

· Common-Mode Chokes (CMCs): This is one of the largest applications. Their very high permeability at low fields makes them exceptionally effective at blocking common-mode electromagnetic interference (EMI) in switch-mode power supplies, variable frequency drives, and automotive electronics.

· High-Frequency Power Transformers: Used in high-power, high-frequency systems like solar inverters, welding equipment, and telecom power supplies, where efficiency and size are critical.

· Current Transformers (CTs): Their high permeability and linear magnetic properties make them excellent for highly accurate current sensing.

· Aerospace and Military: Where reliability, wide temperature range, and high performance are non-negotiable.

Conclusion

In summary, nanocrystalline cores are a premium magnetic material engineered at the atomic level to deliver a combination of high magnetic saturation, exceptionally low losses, and high permeability. While more expensive than ferrites, they are enabling a new generation of smaller, more efficient, and more powerful electronic power conversion systems. They directly address the limitations of ferrites in applications where both high power and high frequency are required.
