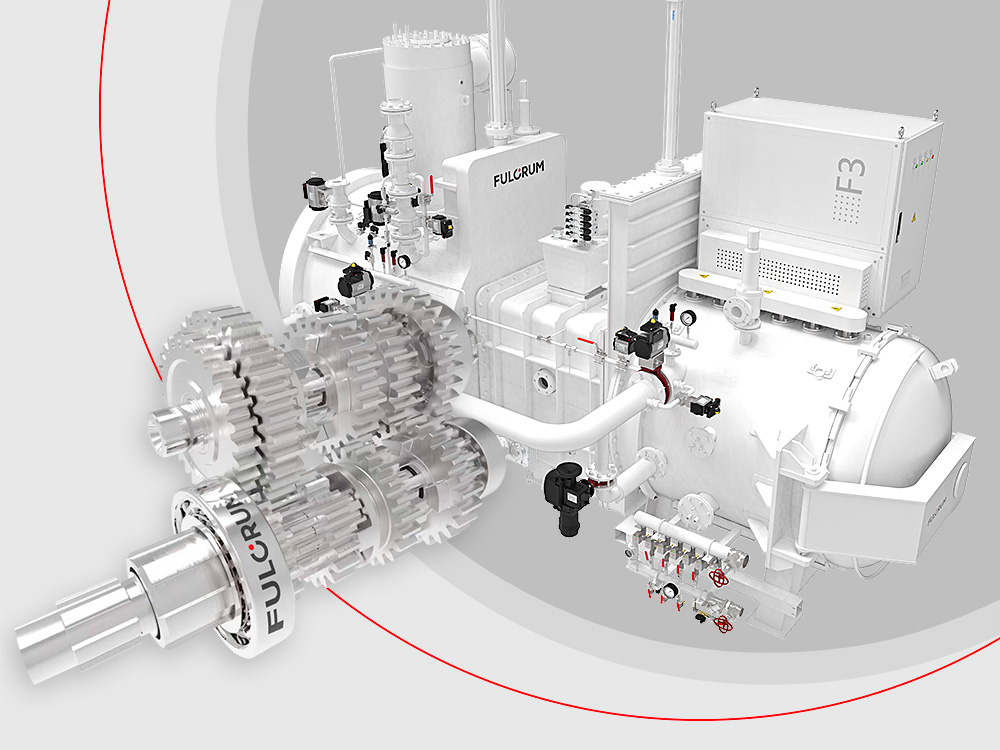

Low Pressure Carburizing (LPC), combined with High Pressure Gas Quenching (HPGQ), is today the state-of-the-art thermochemical process for high-performance gear manufacturing.

It offers significant advantages over traditional atmospheric carburizing methods.

1. Superior Metallurgical Quality and Performance

• No Intergranular Oxidation (IGO): This is the single biggest advantage. Traditional atmospheric carburizing uses oxygen-bearing gases, which cause oxygen to seep into the grain boundaries of the steel, forming brittle oxides. LPC occurs in a vacuum with pure hydrocarbon gases (like acetylene), eliminating oxygen. This results in:

• Higher Fatigue Strength: The absence of brittle oxide networks drastically improves bending fatigue and contact fatigue life, which is critical for gears.

• Improved Hardness Profile: A cleaner, sharper case-core transition.

• No "Black Layer": Eliminates the need for post-carburize cleaning to remove the oxidized surface layer.

• Excellent Case Uniformity: The process provides extremely consistent and repeatable case depths, even on gears with complex geometries (e.g., internal teeth, splines, or clusters). The gas penetrates deeply and evenly into tight spaces, avoiding the "shadowing" effects that can occur in atmosphere furnaces.

• Enhanced Microstructure: LPC allows for better control over carbon potential, leading to a more ideal microstructure with less retained austenite and a finer, more uniform carbide distribution.

2. Significant Process and Operational Advantages

• Reduced Process Time (Increased Throughput): LPC operates at higher temperatures (often 980°C to 1040°C vs. 930°C for atmospheric) without the risk of sooting or oxidation. This significantly accelerates carbon diffusion, reducing total cycle time by up to 50%.

• Energy Efficiency: The furnace heats up quickly and doesn't require continuous gas flows like atmosphere furnaces. The hot zone is lightweight ceramic fiber insulation, leading to lower energy consumption per batch.

• Elimination of Endothermic Gas Generators: Traditional methods require separate, energy-intensive "Endo" generators to produce the carburizing atmosphere. LPC eliminates this entire system and its associated costs and maintenance.

• Clean and Safe Process: There are no flammable or explosive gas mixtures in the furnace. The process is environmentally friendly, producing no CO, CO₂, or soot emissions.

3. Geometric and Dimensional Control

• Minimal Distortion: When paired with High Pressure Gas Quenching (HPGQ), LPC offers superior control over gear distortion.

• Uniform Cooling: HPGQ cools the load more uniformly than oil quenching, reducing thermal gradients that cause warping and out-of-roundness.

• Controllable Parameters: Quenching intensity can be precisely controlled by adjusting gas pressure (2 to 20 bar) and velocity. This allows for "tailored quenching" to minimize distortion on specific gear geometries.

• Reduced Post-Processing: The significant reduction in distortion means less stock needs to be left for final grinding, reducing grinding time and cost. In some cases, "net-shape" gears can be produced, eliminating the need for hard finishing altogether.

4. Environmental and Economic Benefits

• Eliminates Fire Scale: Since the process occurs in a vacuum, the gears come out bright and clean, eliminating the need for post-heat treat pickling or shot blasting to remove scale.

• Improved Workplace Safety: No toxic or flammable atmospheric gases are present in the workshop.

• Overall Cost Reduction: While the initial capital investment is higher, the combined savings from reduced process time, lower energy consumption, less gas usage, drastically reduced scrap rates (from distortion), and elimination of post-cleaning steps lead to a lower total cost per part in high-volume production.

Conclusions

The advantages of low pressure carburizing make it the premier choice for manufacturing high-performance gears used in demanding applications such as aerospace transmissions, automotive racing gears, wind turbine gearboxes, and heavy-duty industrial machinery. The improvements in fatigue life, dimensional control, and process efficiency far outweigh the higher initial investment, leading to a more reliable and cost-effective product in the long run.
